A Complete Guide for Hot Air Oven in Laboratories

Sterilization is important in the laboratory and industrial environments to avoid contamination and ensure accuracy in results. Conventional processes involving moist heat or chemicals can destroy certain products such as powders, oils, or glassware. It therefore poses a requirement for a dry, efficient sterilization process.

A hot air oven presents a good option where dry heat is applied to destroy microorganisms without the use of moisture, making it suitable for use on heat-resistant materials. This guide explores everything about hot air ovens, from working principles to advantages and maintenance.

What is a Hot Air Oven?

A hot air oven is a high-temperature device used for sterilizing and drying materials with dry heat, typically set between 160°C and 250°C. It circulates hot air in an insulated chamber, facilitating controlled heating and even heat distribution. A hot air oven is used in various industries, including pharmaceuticals, food processing, and laboratories, for sterilizing equipment and materials.

Thus, Hot air ovens are critical equipment employed to sterilize and dry materials in a wide range of industries. They are ideal for processes that require accurate heat due to their capacity to maintain a constant temperature. This article discusses what hot air ovens are, how they function, their applications, advantages, and maintenance techniques.

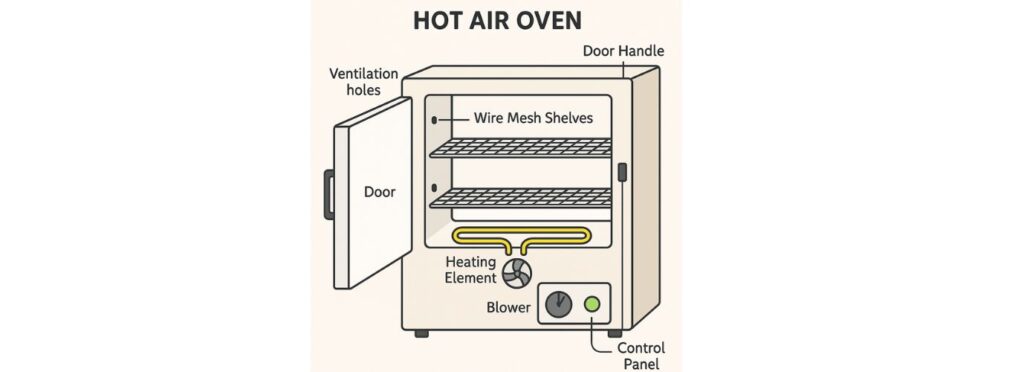

Hot Air Oven Diagram

A hot air oven is specifically constructed with insulation layers and a heating element to provide uniform distribution of dry heat in its chamber for efficient sterilization. Here are the major parts usually present in a hot air oven, along with their purposes:

1. Outer Body

Material: Powder-coated mild steel or stainless steel.
Purpose: It gives structural support and guards the inner parts.
Feature: It usually has a corrosion-resistant coating for durability in laboratory conditions.

2. Inner Chamber

Material: Typically stainless steel or anodized aluminum.
Purpose: Supports the materials to be sterilized.
Feature: Smooth, rust-free surface that is easy to clean and reflects heat evenly.

3. Insulation Layer

Material: High-grade glass wool or ceramic fiber.
Purpose: Insulates against heat loss and keeps the user safe from exposure to high temperatures.
Benefit: Maximizes energy efficiency by reducing exterior heat radiation.

4. Shelves or Racks

Material: Removable stainless steel or chrome-plated trays.
Purpose: Arrange multiple items within the chamber for sterilization simultaneously.
Feature: Adjustable height to fit various equipment sizes.

5. Heating Elements

Location: Installed at the bottom, sides, or back of the oven.
Purpose: Create the desired temperature for sterilization.
Operation: Regulated by a thermostat or microprocessor-controlled digital controller.

6. Temperature Controller / Thermostat

Types: Analog dial-type or digital PID (Proportional-Integral-Derivative) controller.
Purpose: Preserves and controls the set temperature precisely.
Feature: Alarm system for over-temperature protection in some models.

7. Air Circulation Fan (Blower)

Purpose: Provides even distribution of the hot air in the chamber.
Benefit: Removes cold spots to allow efficient and uniform sterilizing.
Feature: Typically driven by a low-voltage electric motor.

8. Gasket Door

Material: Insulated door featuring a silicone or asbestos-free gasket seal.
Purpose: Retains heat and internal pressure.
Feature: Secure locking system and occasionally a glass window for viewing inside.

9. Control Panel

Features: Temperature setting buttons, on/off switches, indicator lights, timer, and safety controls.
Purpose: User interface to control and check the oven.
Feature: In digital versions, LCD or LED displays show instantaneous temperature and operation time.

How Does a Hot Air Oven Work?

A hot air oven is based on dry heat sterilization by ensuring an even circulation of hot air within its inner chamber. It kills off microorganisms by oxidizing their cell constituents with the aid of high temperatures for a stipulated duration.

1. Heating Process Starts

The heating elements (generally electric resistive coils) start to get heated.
These components are positioned at the bottom, sides, or rear of the oven.
Heating produced by these components begins to raise the interior chamber temperature.

2. Air Circulation for Consistent Heat

An integrated fan or blower begins to circulate hot air uniformly.
This circulation of air eradicates cold spots and permits all surfaces and contents of the oven to get even heat exposure.
Without adequate air flow, sterilization may not be complete.

3. Regulation of Temperature

There is either a thermostat or a digital temperature controller that monitors the internal temperature constantly.
The controller keeps it constant once the temperature set as a preset is attained by switching on or off the heating elements whenever necessary.
Specially advanced types have PID controllers to provide tighter and more stable temperature control.

4. Sterilization With Dry Heat

The oven is held at a high temperature (typically 160°C to 180°C) for a pre-determined period (30 minutes to 2 hours, depending on the temperature).
Dry heat kills microorganisms by:
Denaturing proteins
Oxidizing cellular structures
Reducing essential enzymes and nucleic acids

5. Cooling Down Phase

Once the sterilization process is complete, the oven either cools naturally or through controlled venting.
The oven door should not be opened immediately to avoid thermal shock and damaging the sterilized materials.
It is advisable to wait for the internal temperature to decrease substantially before items are taken out.

6. Safety Features

Most modern ovens have thermal cutoffs or overheat alarms to avoid accidents.
Others also have timers that shut down the oven automatically once the cycle is over.

Hot Air Oven Working Principle

A hot air oven operates on the principle of convection heating. Heat is produced through a heat source, and it provides hot air circulation all over the oven chamber through a fan or air circulation system. The forced circulation maintains the temperature within the oven uniformly, providing uniform heating.

Hot Air Oven Temperature and Time

The hot air oven temperature and time play a crucial role in achieving accurate and consistent results in sterilization and drying processes. Typically, a hot air oven operates at temperatures ranging from 160°C to 180°C, with the standard sterilization cycle being 160°C for 2 hours or 180°C for 30 minutes.

The exact temperature and time settings depend on the type of material being treated and the level of sterility required. Ensuring proper calibration and uniform heat distribution is essential for optimal performance in laboratories and industrial applications.

Uses of Hot Air Oven

Hot air ovens are used extensively in most industries and laboratories for dry heat sterilization, drying, and heat treatment. Since they can sustain high temperatures in a controlled environment without moisture, they can be used to handle heat-resistant and moisture-sensitive materials. A detailed explanation of the various applications of a hot air oven is given below:

1. Sterilization in Laboratories

Dry heat destroys microorganisms through oxidation, hence very effective for materials where moisture is not desired. Hot air ovens are mostly applied in microbiology and research labs to sterilize:

Glassware: Petri dishes, test tubes, flasks, and pipettes.
Metal Instruments: Scalpels, forceps, and scissors capable of withstanding high temperatures.
Powders and Chemicals: Compounds that degrade or react when in a moist environment.
Oils and Greases: These cannot be autoclaved since water affects their properties.

2. Pharmaceutical Industry

In the pharmaceutical industry, dry heat sterilization plays a vital role in maintaining a contamination-free medicinal product throughout the process of manufacture and packaging. Hot air ovens find application in the following ways in pharmaceutical environments:

Sterilization of packaging material like glass ampoules and vials before filling.
Heat treatment of chemical compounds prone to moisture damage.
Maintenance of aseptic processing during formulation of drugs and laboratory analysis.

3. Food Industry Applications

Controlled drying preserves the integrity of food samples and enhances product safety. Quality control and food product testing involve the use of hot air ovens:

Moisture Content Testing: Eliminating water content from samples to test stability and shelf-life.
Sterilization of utensils and containers utilized in food processing.
Packaging stability tests: Imitating storage conditions by exposing packages to heat.

4. Textile Industry

In the textile industry, it assists manufacturers in achieving standard quality and heat resistance of textile products.Hot air ovens are utilized in textiles and fabric production for:

Color Fastness Testing: Testing how dyes respond to long-term exposure to heat and air.
Shrinkage and durability testing: Testing fabric response to dry heat conditions.
Curing finishes: Drying and fixing finishes or coatings put on fabrics.

5. Electronics and Electrical Industry

Moisture can seriously impair electronic components, and so hot air ovens are a necessary tool for pre-treatment and testing. Drying electronic components before assembling eliminates water, which leads to short circuits.

Heat testing of electrical components and insulation for testing resistance against high temperatures.
Sterilizing equipment for use in cleanroom conditions.

6. Research and Educational Institutions

Hot air ovens are an instrument used in biology, chemistry, and physics laboratories in schools and colleges.

Sterilization techniques demonstration to students.
Preparation of lab samples for experimentation.
Sample drying and conditioning before chemical analysis.

Advantages of Hot Air Oven

Hot air ovens provide a set of benefits that render them extremely useful in laboratories, medicine, research, and industries. The following is a comprehensive description of the major benefits:

1. Efficient Dry Heat Sterilization

The most valuable feature of a hot air oven is that it can execute efficient dry heat sterilization. It kills bacteria, viruses, fungi, and spores by oxidizing their cell contents at high temperatures. This process is particularly ideal for products that are not able to be exposed to moisture, i.e., powders, metal instruments, and glassware.

2. Safe for Moisture-Sensitive Materials

Hot air ovens differ from autoclaves, they do not add any moisture into the process of sterilization. Because of this, they are highly suited to processing materials that will be harmed or degraded by moisture, i.e., electrical parts, powders, some chemicals, and oils.

3. Minimal Risk of Corrosion

Since hot air ovens function without steam or water, corrosion or rusting of metal instruments and parts is not possible. This comes in handy when sterilizing delicate surgical instruments, laboratory equipment, or precision equipment made of stainless steel or any other metal.

4. Uniform Heat Distribution

Modern hot air ovens incorporate internal air blowers or circulation fans that circulate the heat across the chamber. This provides even heat distribution to all items, irrespective of location. Consistent heat distribution ensures uniform sterilization or drying, which is essential for lab precision and industrial quality control.

5. Easy and Simple Use

Hot air ovens are relatively easy to use, with all but the simplest models having straightforward control panels that allow for temperature and time settings. Even digital models provide precise temperature control and automatic timers. The equipment does not need exhaustive training for users to operate it, making it usable for laboratory technicians, students, and factory staff alike.

6. Applicable for Continuous or Long-Term Operation

Hot air ovens are designed for extended service and hold stable temperatures for several hours without any performance problems. This makes them ideal for continuous drying, sterilization cycles, or long-term test applications. Their heavy-duty construction and long-lasting heating elements also make them last longer, particularly in heavy-use facilities such as research facilities and production floors.

7. Low Cost and Low Maintenance

Relative to autoclaves and other types of sterilization equipment, hot air ovens are usually cheaper to buy and maintain. They do not have water connections, steam generators, or pressure valves, so there will be lower installation and maintenance costs. With their basic design also comes fewer mechanical breakdowns, so they are an affordable option for institutions with limited budgets or simple sterilization demands.

Limitations of Hot Air Oven

Though hot air ovens have several benefits for dry heat sterilization and material testing, they are also limited in several ways. These limitations may impact their effectiveness, safety, and general applicability to some uses. The following are the key limitations of hot air ovens, discussed in detail:

1. Not Ideal for Heat-Sensitive Materials

One of the main constraints of a hot air oven is that it cannot sterilize or process heat-sensitive materials. Plastics, rubber, and some fabrics melt, warp, or deteriorate at high temperatures, usually between 160°C and 180°C. The oven, therefore, is not the right equipment to sterilize medical equipment with rubber components, sensitive laboratory material, or any material that cannot endure prolonged exposure to dry heat.

2. Greater Sterilization Time Than Autoclaves

Hot air ovens take longer to provide effective sterilization than moist heat procedures such as autoclaving. For example, whereas an autoclave can sterilize products at 121°C for 15–20 minutes, a hot air oven must hold at 160°C for 2 hours or 180°C for 30 minutes. The longer exposure time cuts throughput and can decrease productivity in high-volume labs or manufacturing plants.

3. Limited Penetration Power of Dry Heat

Dry heat penetrates less than steam. That is, it takes more time for the heat to travel through thick or tightly packed materials, particularly if objects are not spaced. Uneven sterilization is, therefore, possible if the oven is overloaded or objects cover the airspaces. This restriction requires special care in arranging objects, which can limit what can be done at one time.

4. High Energy Consumption

Because of the long operation times and high temperatures needed, hot air ovens can be energy-consuming. Sustaining steady heat for hours takes up more electricity, particularly in older devices that do not have energy-efficient insulation or temperature control mechanisms. With time, this adds up to higher operating costs and a larger environmental footprint compared to quicker, more efficient sterilization processes.

5. Overheating and Fire Hazards

Inappropriate use or faulty components will result in overheating, and there will be a fire hazard with the presence of flammable liquids or volatile chemicals. Uncontrolled rising temperature can happen if the temperature control system malfunctions or if the ventilation ports are clogged. This necessitates frequent maintenance and inspection to ensure safety, but will also contribute to the workload during operation.

Maintenance of Hot Air Oven

Taking care of a hot air oven entails routine cleaning, scheduled checks, and calibration in order to function in the most effective manner. It involves keeping the chamber and racks clean, inspecting the heating element, fan, and thermostat for wear, and ensuring precise temperature control. Fixing problems such as uneven heating or temperature fluctuations as soon as they arise also ensures efficiency.

1. Cleaning

Clean the interior and exterior of the oven regularly, including racks, shelves, and the heating element. Use a gentle cloth and soap or a suitable cleaning solution, not abrasive substances or chlorine disinfectants.

2. Inspections

Inspect the heating element, fan, thermostat, and other parts regularly for damage or wear. Replace damaged or faulty components as soon as possible.

3. Calibration

Check that the thermostat is properly calibrated to provide accurate temperature regulation. Check temperature accuracy using a calibrated thermometer.

4. Troubleshooting

If you encounter problems such as uneven heating or temperature oscillations, troubleshoot by examining loose connections, broken components, or obstructed airflow.

5. Operating Practices

Don’t overload the oven with specimens, keeping enough airflow available. Make sure the chamber doors are in place and liquid materials are not within.

Always adhere to safety precautions, such as wearing the right protective equipment and having proper ventilation.

Conclusion

A hot air oven is an essential laboratory and industrial equipment for dependable, dry heat sterilization. Knowledge of its parts, mode of working, benefits, and limitations facilitates maximum utilization and maintenance. With regular maintenance, a hot air oven offers effective and secure sterilization for decades to come.
