India’s power is growing at a pace never seen before. Whether it is solar parks in Rajasthan or a metro tunnel in Bengaluru, or even the industrial clusters of Gujarat, cables are the unobtrusive enablers that make everything tick. It increases in size and complexity, so too does what cables are expected to do, they need to be safe and durable, resistant both to India’s vast environmental range and its sometimes tough weather.
While there are many tests for evaluating the performance of a cable, one test that is the nearest match to conditions in actual service is Hot Elongation and Deformation testing. This test is far more rigorous than the usual“lab quality” test. It allows manufacturers to see.
How cable insulation and sheathing perform under high temperatures and structural stress, the very conditions that cables will be exposed to after installation. For producers planning to provide the highest-quality cables, and for laboratories that rely on precision, knowing this test is crucial. And in a country like India where SIPCON Technologies are becoming known for providing metrology and measuring instruments, this test is backed at detailed inspection with the accuracy and repeatability that comes natural to such systems.
A test that shows us how a cable insulation or sheath material behaves when the sample is brought to a certain high temperature.
The test reveals:
This is because cables here in India are exposed to harsh conditions: the outdoor heat in the summer direct sun on them, industrial furnaces that they run over, engine areas or those cable trays near boilers and even high-load System itself causes the cable to generate its own heat! If the insulation distorts or elongates under these conditions, the cable could fail many years short of its design lifespan.
‘Hot elongation’ and ‘hot deformation performance’ there are limits in Indian/International Standards. Noncompliant cables are subject to insulation failures, short circuits, or fire hazards. In industries like railways, infrastructure, solar and EV charging, compliance is not just a duty but a responsibility.
Considering that the mercury crosses (\approx 45^{°}C) in northern part of India where summer is unbearable and industrial zones can see ambient temperature well above (60^{°}C); cables in India are subjected to severe thermal stress when compared with the same in temperate world.
OEMs, EPCs and electrical consultants require credible evidence of testing. The move towards higher quality cannot be understated, when it comes to testing the properties of elongation and deformation on hot processes, appropriate testing gives some manufacturers an edge.
Cable that stretches too much when it’s hot will sag, crack, experience insulation degradation (thinner walls), and break down, resulting in costly downtime and warranty claims. Early detection changes all that.
Strong-walled cables that hold their shape at high temperatures are needed for markets such as solar energy, EV charging, automation, foundries and multi-story buildings. This test helps ensure that.
SIPCON Technologies, Ambala is a well-reputed name throughout India in the field of precision measurement equipment especially for Cable and Insulation Industry. The actual test, the hot elongation and deformation test, is conducted in a heating chamber with weights The most important aspect lies elsewhere: measurement – here before, there after the test.
High-Precision Dimensional Measurement
The insulation thickness, diameter and ovality or deformation during as well as before the testing are to be determined. For both types of products, SIPCON’s image-based systems and optical measurement solutions can measure the smallest deviations very precisely.
Visual Checkup Plus Digital Documentation
Cracks, buckles, flattening or thinning would need to be identified with precision. The systems of SIPCON provide high-resolution imaging, thus documentation is reliable and observer-independent.
Automated Reporting
No manual calculation required, SIPCON software does batch reports, trend compare and clear pass/fail results. This accelerates quality audits and internal approvals.
Compliant to Indian & International Standards
SIPCON’s measuring devices meet industry standards, enabling labs to adhere to workflows in terms of structures_matching the expectations on international scene.
In sum, SIPCON precision tools enable manufacturers to better control the test process for faster measurements and reliable results — both of which are critical when conducting this kind of test.

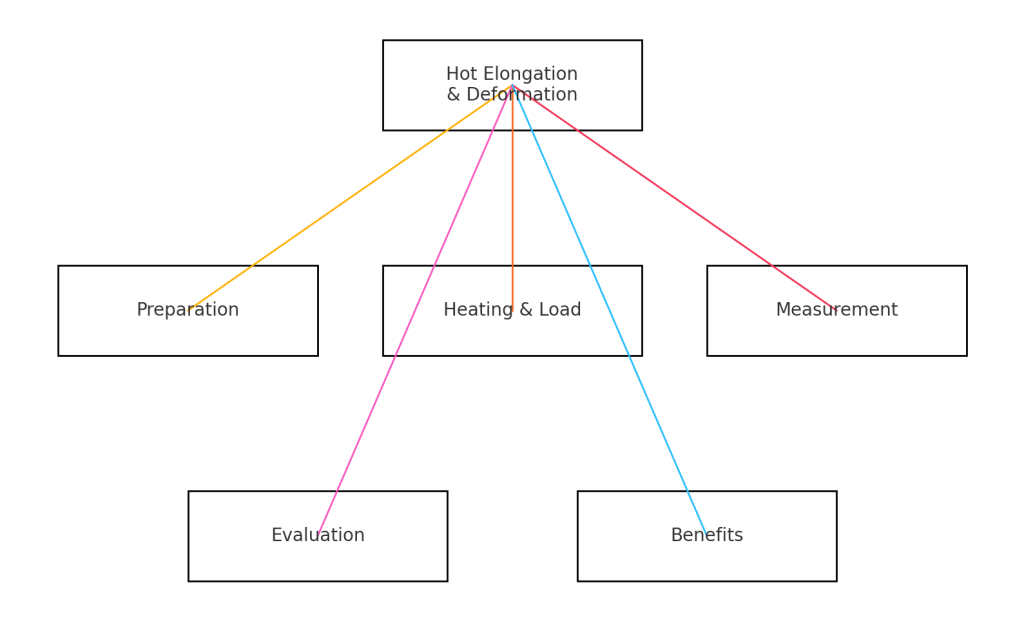

Here is how the majority of Indian cable manufacturers perform this test:
Sample Preparation : Prepare a sample of the defined size as per IS, IEC, or customer standard.
Baseline Measurement : Gauge insulation, diameter and geometry
Capture digital images : Document start values through SIPCON’s plants
Heating and Loading : The sample is placed within a heater cabinet (e.g., 90–150°C, material dependent) and an applied mechanical load to mimic tension at use.
Testing Duration
Exposure time, the material is uncovered (usually for one to two hours). During this time insulation may stretch or simply become deformed.
Comparisons are made with `normal’ limits. This is used to evaluate whether insulation or jacket material is suitable for higher temperatures.
Pressure to deliver faster : The usage of SIPCON measurement automation offers an enormous time saving in the tests.
Need for better traceability : Digital measurement logs and automated reports, allows labs to keep full traceability without the papers.
Quality audits and export requirements : Good hot elongation and deformation results strongly contribute to customer confidence and are consistent with international standards.
No longer are the Hot Elongation and Deformation tests optional check boxes in cable manufacturing as they are even more accurate. What happens when a cable comes out of a factory and hits Indian conditions. From the hot chaos of industrial shop floors to brutal summer afternoons in outdoor installations, cables are far more stressed than laboratory assumptions. These tests enable manufacturers to rest assured that each and every reel is leaving their facility functioning just as advertised.
For businesses all over India that want to overcome new challenges, increase confidence and minimize failures in the long-run is a straightforward investment by driving tests. And when you have got precision solutions from SIPCON Technologies, every measurement is faster, cleaner and more repeatable so that labs and production teams can consistently deliver quality without compromising throughput.
Looking to Improve Your Cable Quality Process?
Whether you are looking to enhance your hot elongation and deformation testing process, or if you need accurate measurement systems to enable reliable inspection of insulation thickness, dimensional stability and deformations. SIPCON Technologies can help you raise the bar on quality. Learn more about SIPCON high-precision cable-tester and measurement technology. Receive advice on the best instruments for your cable requirements Strengthen your testing. Strengthen your cables. Strengthen your brand. Speak to our team experts today to get your perfect kit set up for the job. We would love to connect at info@sipconinstrument.com, or check out our website https://cablemeasurement.com/ Phone: +91 82229 29966
