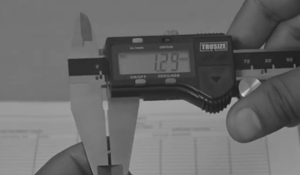

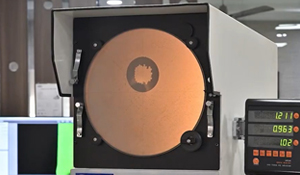

Insulation Thickness Measured at Few Points

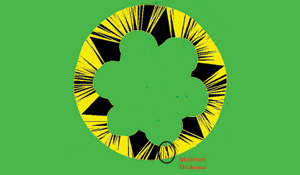

Insulation Thickness Measured from 10,000+ Points
have solved this problem

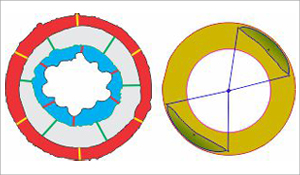

Colour-based insulation thickness calculation is not possible
Automatic color percentage for precise, repeatable results
Automatic Colour Percentage Calculation
Manual, assumption-based reports

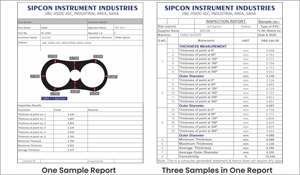

Instant, software-generated reports
Worldwide reporting formats
| Model | SVI-CQ-16 | SVI-CQ-24 | SVI-CQ-36 | SVI-CQ-48 | SVI-CQ-64 | SVI-CQ-80 | SVI-CQ-96 | SVI-CQ-120 | SVI-CQ-150 |
|---|---|---|---|---|---|---|---|---|---|
| Field of View | 016mm | 024mm | 036mm | 048mm | 064mm | Ø80mm | 096mm | Ø120mm | Ø150mm |
| No. of Cameras | 1 for standard and 2 for Dual Configuration | ||||||||
| Camera | 5MP Industrial Camera | 20MP Industrial Camera | |||||||
| Accuracy | (3+L/100)µm | ||||||||
| Repeatability | (2+1/100)µm | ||||||||
| Least Count | 1µm | ||||||||
| Illumination-Surface (optional) | LED | ||||||||
| Illumination-Countour | LED | ||||||||
| Focusing Range (Optional) | 30mm | ||||||||
| Power Supply | 110/220V @ 50Hz ±5% | ||||||||
| Optional Hardware | PC/Laptop with WIN10 operating system | ||||||||
| Construction | Sheet Metal with Fibre Covers or Stainless Steel | ||||||||
| Touch Screen Monitor | Optional | ||||||||
| Table | Optional with Bench Top Vertical Type and Horizontal Type Systems. | N.A. (Floor Standing) | |||||||
Very efficient and wonderful team
There are cable measuring instrument and there is cable genie.
India’s answer to the world for cable measurement solutions.
Explore our complete range of Dimensional measurement solutions

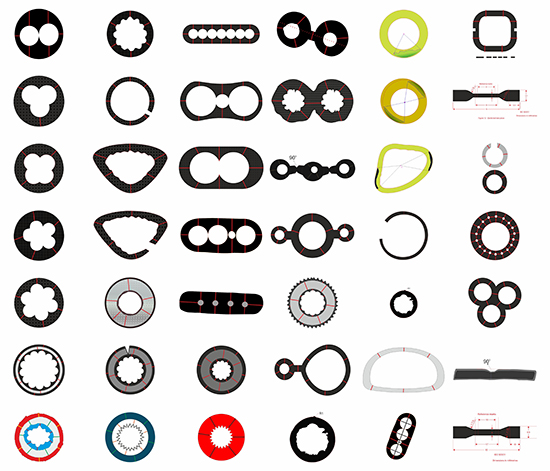

Discover our advanced insulation thickness measurement solution for every cable type.
Key factors you must consider before buying a Perfect cable measurement solution
Want to learn more about our cable testing machines,
schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
It measures the thickness of cable insulation and sheath to ensure compliance with industry standards.
It uses optical or contact-based measurement techniques to determine insulation thickness with high precision.
Pricing depends on specifications and manufacturer.
Look for ISO certifications, industry reviews, compliance with IEC/ASTM standards, and after-sales support.
Buy from reputable manufacturers, authorized distributors, or platforms like cablemeasurement.com.
