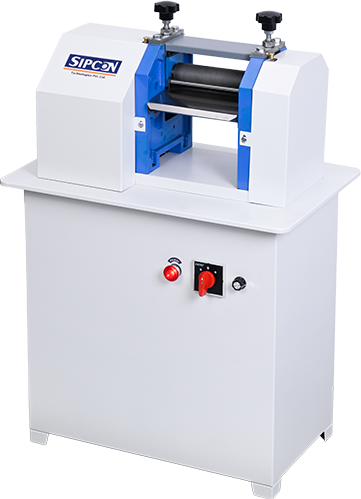

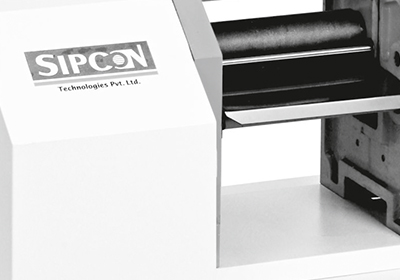

The chipping machine is designed to prepare high–quality test samples required for thermal extension and tensile testing of cable insulation and sheath material. Built according to IEC 60811 test standards, the machine ensures uniform and damage–free specimen preparation for reliable laboratory testing.
Supported Tests
All tests follow the requirements
defined in
IEC 60811 cable testing standards.

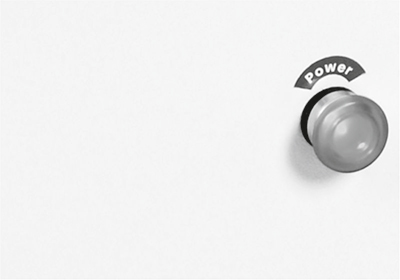

Step 1 – Power Check
Connect the Power Supply and ensure the emergency stop switch is released.

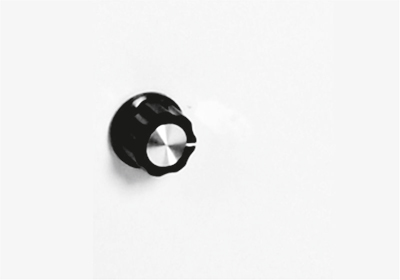

Step 2 – Start the Machine
Turn the forward/Reverse Switch to the forward direction and adjust the speed control knob.

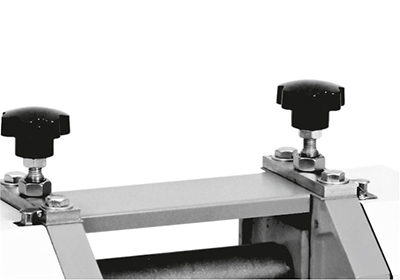

Step 3 – Adjust Roller Gap
Set the gap between the upper and lower rollers slightly smaller than the specimen thickness.
Step 4 – Smooth the Surface
Adjust the rollers to remove the rough surface of the specimen.
Step 5 – Prepare the Sample
Insert the specimen, rotate it 180° and chip both sides until the thickness reaches 0.8 – 2mm.
Step 6 – Chipping Objective
Ensure the Sample becomes thin and Flat for testing.

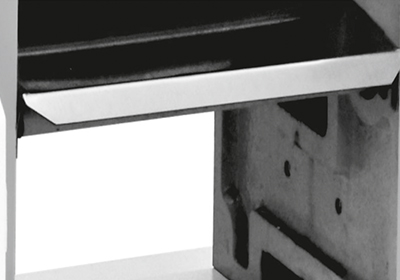

Step 7 – Optimal Cutting Setting
Maintain a 0.1 – 0.2mm gap between the cutting edge and roller for best results.
Step 8 – Cutter maintenance
Remove and polish the cutter if it becomes worn.
| Parameter | Specification |
|---|---|
| Max Working Width | 190 mm |
| Chipping Speed | 0–16 m/min |
| Upper Press Roller Adjust Range | 15 mm |
| Chipping Accuracy | ≤ ± 0.10 mm |
| Motor Power | 1.5 kW |
| Roller Construction | Stainless Steel |
| Cutter Material | Special Tool Steel, Scalpel Grade |
| Dimensions (mm) | 680 (L) × 440 (W) × 1030 (H) |
Explore our complete cable portfolio for your cable inspection requirements.
Discover how this chipping system made the sample preparation reliable.
Want to learn more about our cable testing machines,
schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
It is used to remove the insulation and sheath from cables to prepare precise specimens for testing.
It slices cable insulation and sheath into uniform specimens for quality analysis and testing.
Pricing depends on specifications and manufacturer.
Look for ISO certifications, industry reviews, compliance with testing standards, and after-sales support.
Buy from reputable manufacturers, authorized distributors, or platforms like cablemeasurement.com.
