Designed for precise inner die inspection and accurate measurements of complex profiles

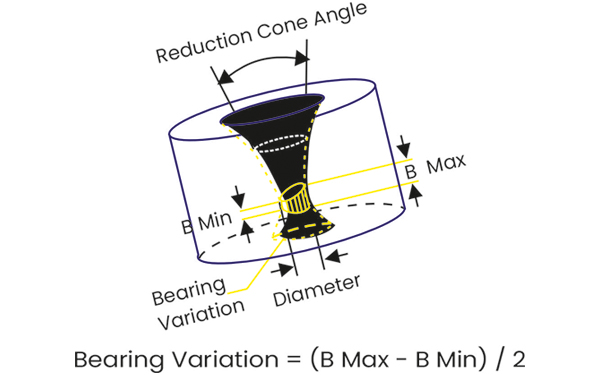

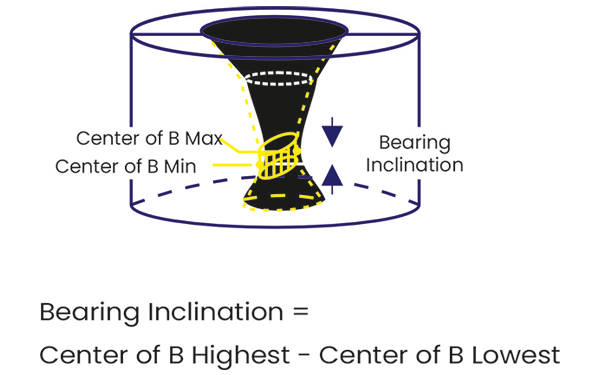

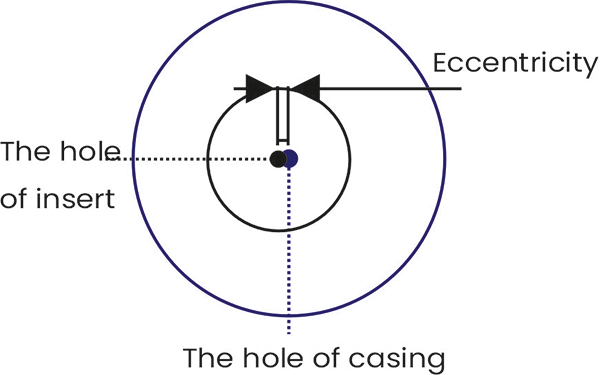

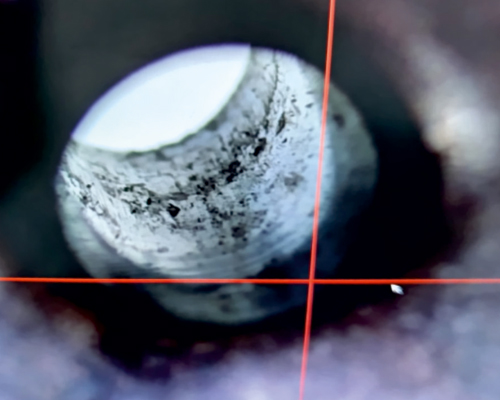

Accurately measures 3D inner diameters through a high-precision drawing die 3D profile measurement system

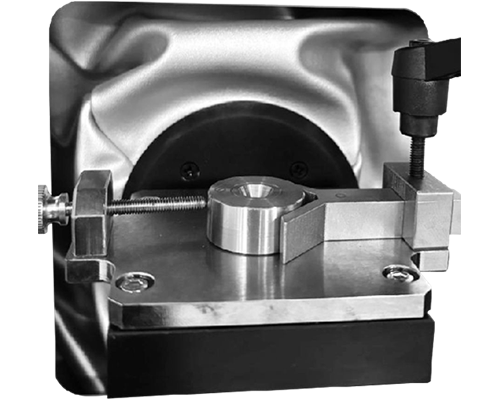

Delivers accurate drawing die measurement with advanced 360° rotation technology
Handles complex angle measurements with high precision, ensuring accurate drawing die geometry measurement
Designed to cover all important aspects of die measurement,
including:
| Models Name | Lens | Magnification | Range |
|---|---|---|---|
| DG-3D-0310 | Lens 1 | 10X | Φ0.03~0.1mm |
| Lens 2 | 4X | Φ0.08~0.5mm | |
| Lens 3 | 0.8X | Φ0.2~10mm | |
| DG-3D-0315 | Lens 1 | 10X | Φ0.03~0.1mm |
| Lens 2 | 4X | Φ0.08~0.5mm | |
| Lens 3 | 0.5X | Φ0.3~15mm | |
| DG-3D-0510 | Lens 1 | 5X | Φ0.05~0.3mm |
| Lens 2 | 0.8X | Φ0.2~10mm | |
| DG-3D-0515 | Lens 1 | 5X | Φ0.05~0.3mm |
| Lens 2 | 0.5X | Φ0.3~15mm |
With dimensional measurements being our arena of expertise, Sipcon wanted to ace the inspections of drawing dies. With that vision in mind we have been able to curate a series of drawing die inspection devices so that no cracks or wears hamper the finishing of your wires.
Explore our complete range of Cable Testing Solutions at one place.
Discover our Wire Drawing Die Measurement system in detail.
An expert guide to choose the right wire drawing die inspection system.
Want to learn more about our cable testing machines, schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
A Wire Drawing Die Measurement System is a precision instrument used to measure and inspect the geometry of wire drawing dies. It ensures accurate die dimensions, helping manufacturers maintain consistent wire quality and reduce production defects.

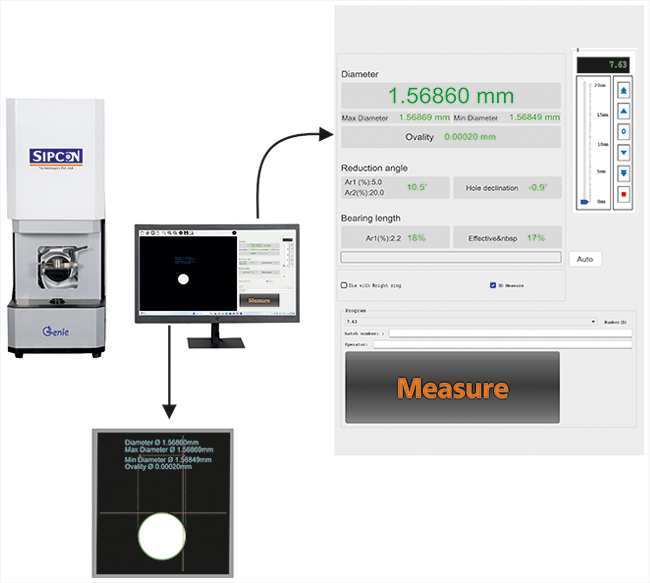

A Wire Drawing Die Measurement System uses advanced optical imaging and software analysis to capture and evaluate die dimensions. This non-contact method delivers fast, accurate, and repeatable measurements without operator dependency.

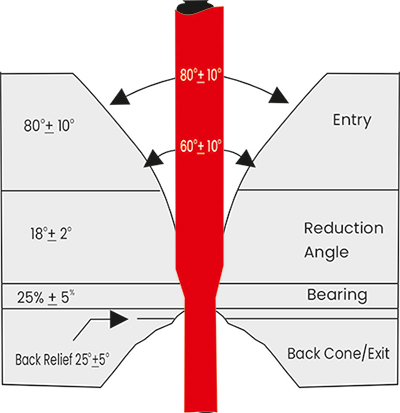

It measures key parameters such as inner diameter, ovality, die profile, and angles. These measurements help identify wear, deformation, and defects that can affect wire drawing performance.
The price of a Wire Drawing Die Measurement System depends on factors like configuration, features, and customization. For accurate pricing, it is best to request a quote based on your specific application and requirements.
You can buy a Wire Drawing Die Measurement System directly from Sipcon Technologies Pvt. Ltd., a trusted manufacturer of die measurement solutions. Contact their team through the official website to get detailed information, pricing, and expert support.
