Ensure accurate die geometry, identify wear at an early stage and maintain consistent cable diameter with high–precision die inspection solutions from Sipcon Technologies – India’s leading manufacturer of measurement instruments.

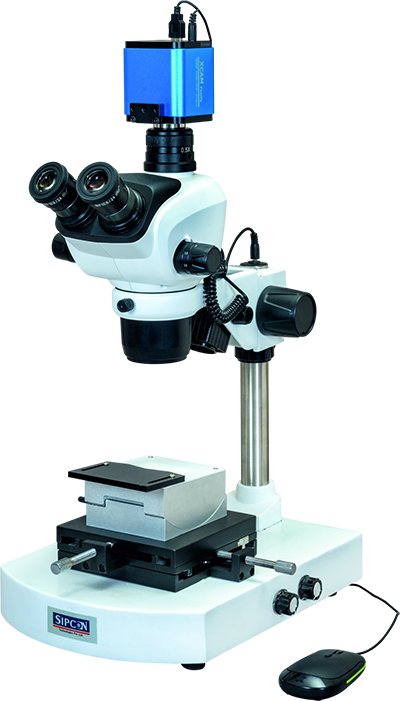

| Parameter | Specification |
|---|---|
| Observation Head | Trinocular |
| Operation | Manual |
| Working Distance | 90 mm |
| Objective Lens | 0.7X – 4.5X |
| Magnification on Eyepiece | 7x – 45x (14X – 90X) |
| Die Holder | Up to 65 mm |
| Zoom Ratio | 6.5 : 1 |
| Vision | 5 MP |
| Eyepiece Type | Compensating |
| Min. Die Diameter |
50 micron (Standard) 30 micron (Optional) |
| Stereoscopic Effect | Yes |
| Diopter Head | Adjustable |
| Max. Die Diameter | 12 mm |
| Eyepiece | 10X / 20X |
| Construction | Metal Base |
| Illumination |
Surface: LED Contour: LED |
| Interpupillary Distance | 50 – 75 mm |
| Weight |
GW: 8 kg NW: 6.5 kg |
Explore our range of cable testing solution for better cable inspection.
See our complete Die Inspection Microscope to ensure precision, performance and longer die life.
Key considerations you must know before investing in Die Microscope.
Want to learn more about our cable testing machines,
schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.

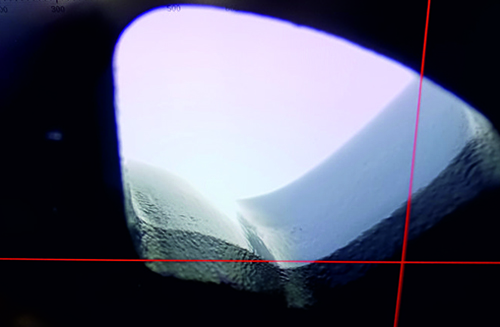

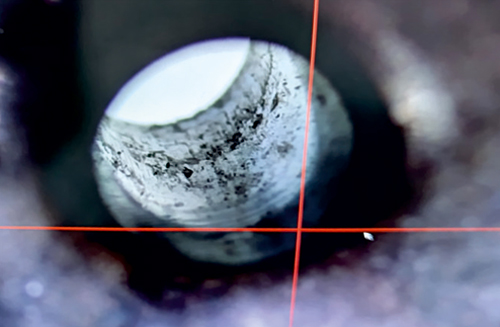

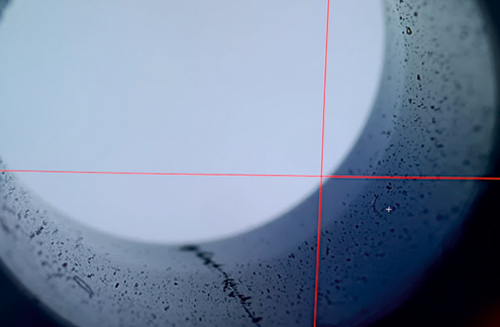

It is used to inspect and measure the internal profile, surface finish, and wear of wire drawing dies.
It magnifies the die’s bore using precision optics, allowing detailed analysis of surface defects and geometry.
Pricing depends on specifications and manufacturer.
Look for ISO certifications, industry reviews, compliance with precision standards, and after-sales support.
Buy from reputable manufacturers, authorized distributors, or platforms like cablemeasurement.com.
