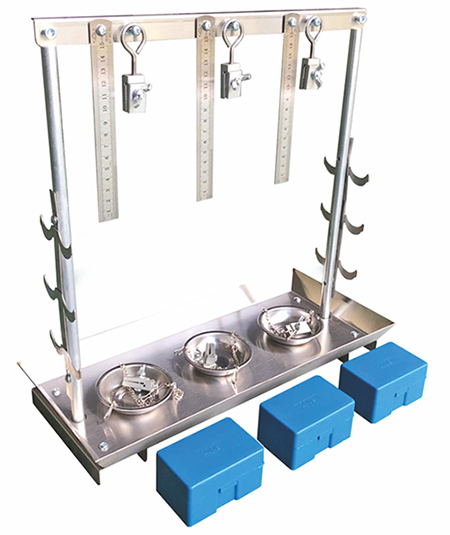

Hot Eloangation test is used to check the
degree of cross - linking in thermoset materials like XLPE insulation.
Poor cross - linking leads to
hidden failures that appear only during operation.
Acceptance criteria (As per Standards)
| Parameter | Specification |
|---|---|
| Length of Ruler | 0 – 150 mm, Accuracy: 1 mm |
| Upper Gripper | 3 |
| Lower Gripper | 3 |
| Dimensions (mm) | 400 (L) × 180 (W) × 400 (H) |
| Weight | 4 kg |
| Accuracy | 1 mm |
| Construction | Stainless Steel |
| Counterweight |
Three sets of 1 – 210 g (100g×1, 50g×1, 20g×2, 10g×1, 5g×1, 2g×2, 1g×1) |
Want to learn more about our cable testing machines,
schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
A Hot Set Test Device is used to evaluate the thermal elongation and permanent deformation of polymeric materials, especially in cable insulation and sheathing under high temperatures.
The test sample is subjected to high temperatures and mechanical load, measuring its elongation and residual deformation to assess heat resistance and material stability.
Prices vary based on features and specifications, contact or request a quote for more such details.
Look for manufacturers with ISO/CE certifications, proven industry experience, accurate calibration standards, and strong customer support.
It can be purchased from authorized testing equipment suppliers, reputed manufacturers, or trusted online marketplaces. Cable Measurement provides high-quality solutions for material testing.
