Insulation thickness depends on a precise cross-section – any uneven or damaged slice can distort the profile and give incorrect minimum thickness readings. A High-precision cable slicing machine ensures clean uniform cuts for accurate and reliable results every time.
Uneven thickness & surfaces
Knife marks & flashes

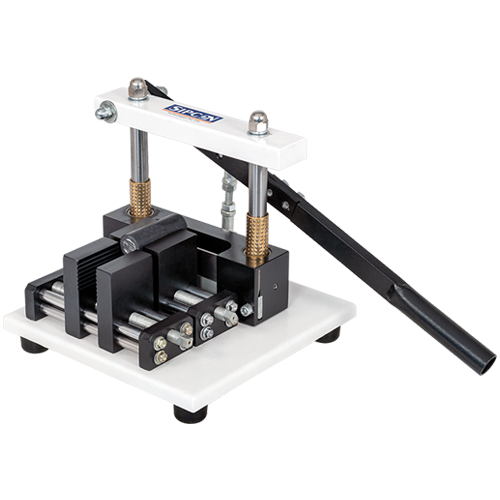

Manual XLPE Slicer
Learn More

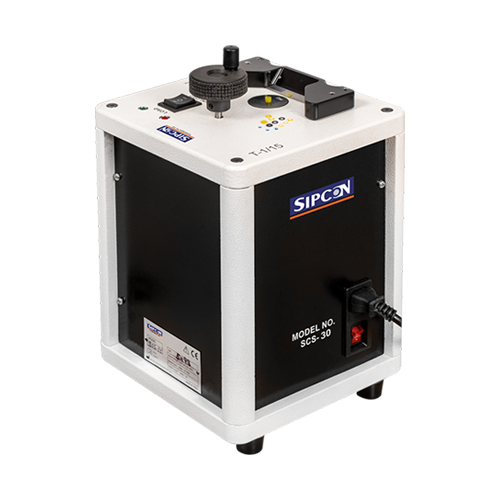

Bench Top Slicer
Learn More

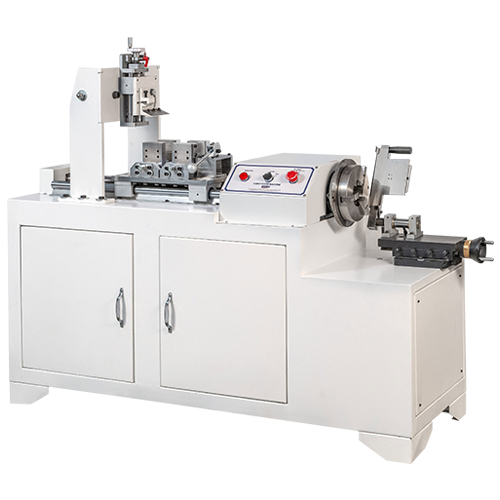

Semi - Automatic Slicer
Learn More

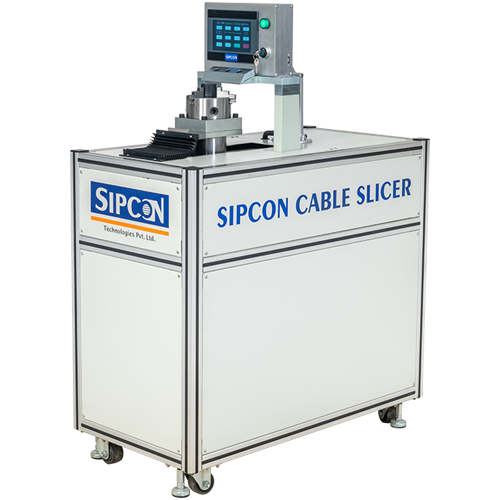

Fully Automatic Slicer
Learn MoreFrom Tough XLPE to Smooth Slices

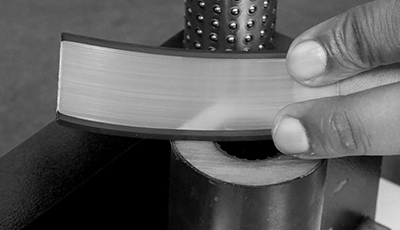

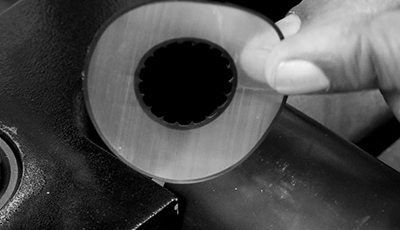

The Cross–Linked Manual Slicer delivers the uniform cutting for cross – linked cables. Designed for ease of use, it ensures fast and accurate ring cutting or slicing, making sample preparation simple and reliable.
Effortless Cable Preparation with Long - Lasting Performance

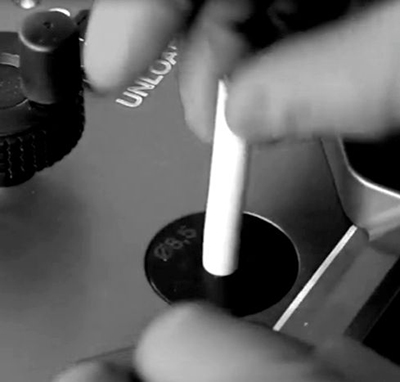

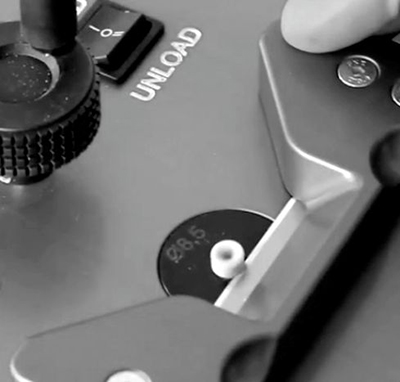

XLPE O-ring cutter provides perfect parallel samples for accurate measurement. It works with several types of cables like PVC, Household and Control cables along with spare blades and multiple dies.
Transform your cable slicing with one advanced machine

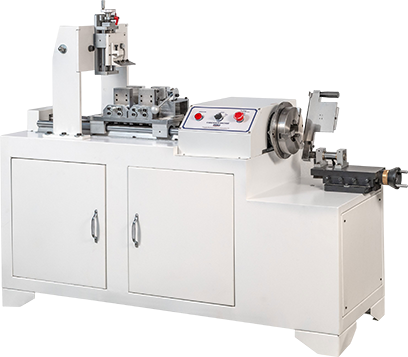

A three in one cable slicing solution slicing,stripping and slitting . It is a semi automatic machine that boosts productivity with a speed of 3 pieces per minute and is flexible for various cable diameters.
Fully Automatic Cable Slicing and Stripping

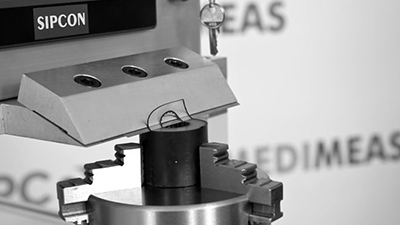

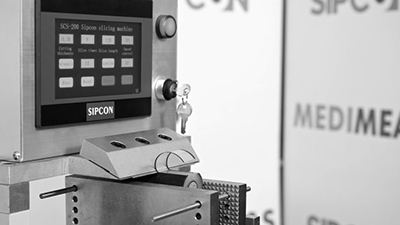

A fully automatic, PLC Control Slicer and Stripper that combines two machines into one–touch screen programmable, equipped with 10 blades for fast, reliable and hands free processing.
| Parameter | Manual XLPE Slicer |
Bench top slicer(15mm) | Bench top slicer(30mm) | Semi automatic slicer | Fully automatic slicer |
|---|---|---|---|---|---|
| Cables | XLPE wires | PVC, household, control cables | PVC, household, control cables | XLPE/ HT/ HDPE cables | XLPE/ HT/ HDPE cables |
| Min Cable Diameter | 5 mm | 0.5 mm | 1 mm | 10 mm | 25 mm |
| Max. Cable Diameter | 120 mm | 15 mm | 30 mm | 125 mm | RING : 145 mm |
| Max. Strip Length | 120 mm | NA | NA | 200 mm | Longitudinal: 145 mm |
| Slice Thickness | 0.5 -1mm | 0.3 mm - 3mm | 0.3 mm - 3mm | 0.5-3 mm | 0.1-2 mm |
| Operation | Manual | Motorised | Motorised | Semi-Automatic | Fully Automatic |
| Programmable | NA | NA | NA | NA | Yes |
| Slitting | NA | NA | NA | Yes | NA |
| Stripping | Yes | NA | NA | Yes | Yes |
| Max Sample Length | 120 mm | NA | NA | 200 mm | 180 mm |
| Blade life (Years) | 1-2 years | NA | NA | 2-5 years | Depends on users’s and samples |
| Blade Life ( Slices) | 1,00,000 slices | NA | NA | Depends upon frequency of use | Depends on user's samples (sample must not include any steel scraps) |
| Spare Blades | 01 | 05 | 05 | 1 set (purchased at user's expense) | 10pcs spares for each machine PS: we send extra 40pcs (4boxes) for spares in this lot. |
| Blade length | 280mm ( 2-part division for 0.5 mm and 1 mm thickness) | NA | NA | 100 mm ( Striping and Slitting) and 150 mm ( Slicing) | Thickness 0.7 X Width25 X Length 125mm ,single cutting edge. |
| Accessories | 1 blade (purchased at user's expense) | 5 spare blades and 10 dies | 5 spare blades and 15 dies | Wrench, Blade - 1 set | For vertical - 3 jaw chuck,For horizontal - Flat piers, 10 pcs Blade, Extended jaws. |
| Cutting Speed (Slices per min) | 30 pieces/min | NA | NA | 3 pieces/min | 0～40cm/min adjustable |
| Maintenance | almost no maintenance required | NA | NA | Regular Maintenance | keep the blade anti-rusting |
| Blade Construction | High speed steel | NA | NA | High speed steel | High speed steel |
| Dimensions | 400 x 600 x 350 mm | 200 x 200 x 300 mm | 200 x 200 x 300 mm | 1800 x 510 x 1350 | 1000 x 510 x 1100 mm |
| Power | NA | 100 W | 100 W | 0.55 KW | 1.5KW |
| Weight | 42 KG | 10 KGS/ 15 KGS | 10 KGS/ 15 KGS | 220 KG | 280 KG |
Dicover our wide range of cable testing solutions according to your needs.
Choose the best o-ring cable cutters for your multiple cable types.
A guide by expert to know that what factors you consider before investing in cable slicers.
Want to learn more about our cable testing machines,
schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
A cable slicer is a precision machine used to cut and clean uniform cross-sections (O-rings) from cables. It ensures accurate insulation thickness measurement and reliable sample preparation every time.
A cable slicer is used to quickly slice and strip insulation from cables without damaging the wire inside. It helps save time, reduce manual effort, and improve precision in electrical workshops, manufacturing, and recycling industries.
Insulation thickness is measured from the cross-section of a cable slice and have significant impact of cable slicer quality. If the slice has uneven surfaces, knife marks, or flashes, it distorts the profile and gives incorrect thickness readings.
We offer four types of cable slicer: Manual XLPE Slicer, Bench Top Slicer (Portable), Semi-Automatic Slicer (Slicer, Stripper & Slitter), and Fully Automatic Slicer (PLC type). Each is designed for different cable types, diameters, and production volumes.
Cable slicer machine handles cables from 0.5 mm to 145 mm diameter including XLPE, PVC, HT, HDPE, household, and control cables. Each model has different min/max diameter compatibility where each refer to the Technical Specifications of the machine.
The Semi-Automatic Slicer is a 3-in-1 machine (slicing, stripping, slitting) with a speed of 3 pieces per minute and is operator-assisted. The Fully Automatic (PLC) Slicer is touch-screen programmable, hands-free, equipped with 10 blades, and supports adjustable cutting speeds up to 40 cm/min.
The price of a cable slicer machine ranges from INR 50,000 to INR 2,00,000 in India. The price varies depending on features, capacity, automation level, and cable size range. For the best price, contact us to get a quote.
You can buy genuine cable slicer machines directly from leading manufacturers. Sipcon Instruments is a top manufacturer and supplier in India, known for high-quality, reliable cable slicing machines and excellent customer support.
