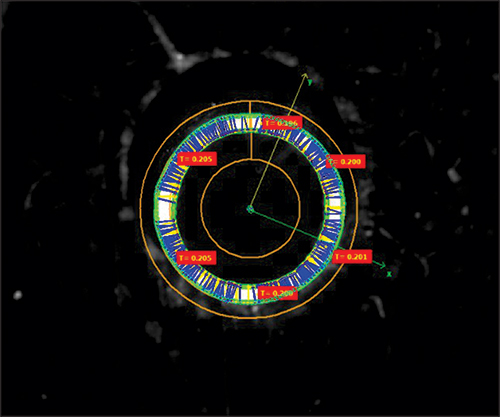

Wire genie simplifies and automates wire coating thickness inspection and reporting, delivering accurate, repeatable and
standard–compliant results with high – resolution 10,000+ points insulation thickness measurement.
| Model | SV4-4K-ZOOM |
|---|---|
| Field of View | Ø16mm |
| No. of Cameras | 1 for standard and 2 for Dual Configuration |
| Camera | 5MP Industrial Camera | 20MP Industrial Camera (Optional) |
| Accuracy | (5+L/100) µm |
| Repeatability | (3+L/100) µm |
| Least Count | 1 µm |
| Illumination – Surface | LED |
| Illumination – Contour | LED |
| Focusing Range | 30mm |
| Power Supply | 110/220V @ 50Hz ±5% |
| Optional Hardware | PC/Laptop with WIN10 operating system |
| Construction | Sheet Metal with Fibre Covers or Stainless Steel |
| Touch Screen Monitor | Optional |
| Table | Optional with Bench Top Vertical Type and Horizontal Type Systems, N.A. (Floor Standing) |
Connect with our experts and get the best suitable solution.
Explore the complete measurement solutions - From Cable Cutting to complete Cable analysis.
Discover our Wire coating thickness inspection and reporting system with their software.
Want to learn more about our cable testing machines, schedule a product demo, or discuss your measurement challenges,
our experts are ready to assist you. Reach out to us and get the right solution for your application.
